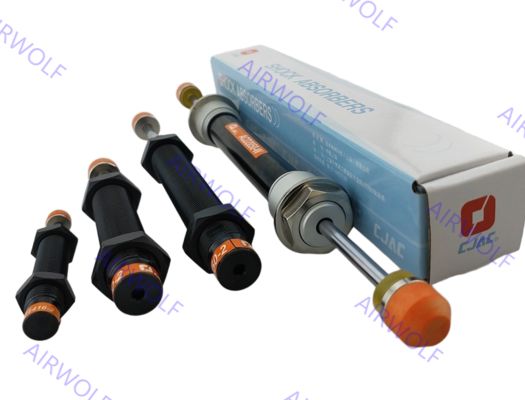

CJAC AC Series AC2020-2, AC2030-2, AC2050-2, AC2525-2 Shock Absorber

CJAC AC Series AC2020-2, AC2030-2, AC2050-2, AC2525-2 Shock Absorber

جزئیات محصول:
محل منبع: تایوان، چین، چین
نام تجاری: CJAC, AIRWOLF or OEM
شماره مدل: AC2020-2، AC2030-2، AC2050-2، AC2525-2
پرداخت:
مقدار حداقل تعداد سفارش: 1 قطعه
قیمت: 4-7USD
جزئیات بسته بندی: جعبه، کارتن، پالت، کیسه های پلاستیکی
زمان تحویل: 1-7 روز کاری
شرایط پرداخت: T/T، وسترن یونیون، پی پال
قابلیت ارائه: 1000 قطعه در هفته
مخاطب
توضیحات محصول جزئیات
کد مورد: AC2020-2، AC2030-2، AC2050-2، AC2525-2 مواد لوله بیرونی: AISI1215 و STKM11a اکسیده شده سیاه و سفید ، درمان آبکاری نیکل
مواد میله پیستون: درمان آبکاری کروم سخت دامنه دمای کار: -10 ~ 80 ℃
تابع: محافظت از ضربه ، جذب شوک دامنه سرعت: 2.0 تا 2.5 متر بر ثانیه
برجسته کردن:

CJAC AC Series shock absorber,Pneumatic air cylinder shock absorber,AC2020-2 shock absorber with warranty

,

Pneumatic air cylinder shock absorber

,

AC2020-2 shock absorber with warranty

CJAC AC Series AC2020-2, AC2030-2, AC2050-2, AC2525-2 Shock Absorber

The AC series is designed for fixed construction. Linear deceleration of moving objects is maintained through specially designed and tested oil holes and alignment. From high-speed light loads to low speeds and high loads, this shock absorber absorbs the appropriate energy without adjustment. After the load is removed, the axis is pushed to the original position by the return spring. The AC series has three models of high speed, medium speed, and low speed to meet your different requirements.

Order Code:


Item Code A(mm) B(mm) D(mm) F(mm)
AC2020-2 145.3 110 6 101
AC2030-2 158.3 113 6 104
AC2050-2 232.5 167 6 158
AC2525-2 155 111 8 101

CJAC AC Series AC2020-2, AC2030-2, AC2050-2, AC2525-2 Shock Absorber


Specifications:


Model AC2020-2 AC2030-2 AC2050-2 AC2525-2
Stroke(mm) 20 30 50 25
Maximum absorbed energy (Nm(Et)) 40 50 60 80
Absorbed energy per hour (Nm(Etc)) 40000 48000 60000 54000
Maximum effective weight (Kg(Me)) 200 200 400 800
Highest impact speed (m/s(v)) 2.0 2.0 2.0 2.5
Thread M20x1.5 M20x1.5 *M20x2.0 M20x1.5 M25x1.5 *M25x2.0


Quality Standards:


The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:


You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:


We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:


Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) 1 year warranty
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
